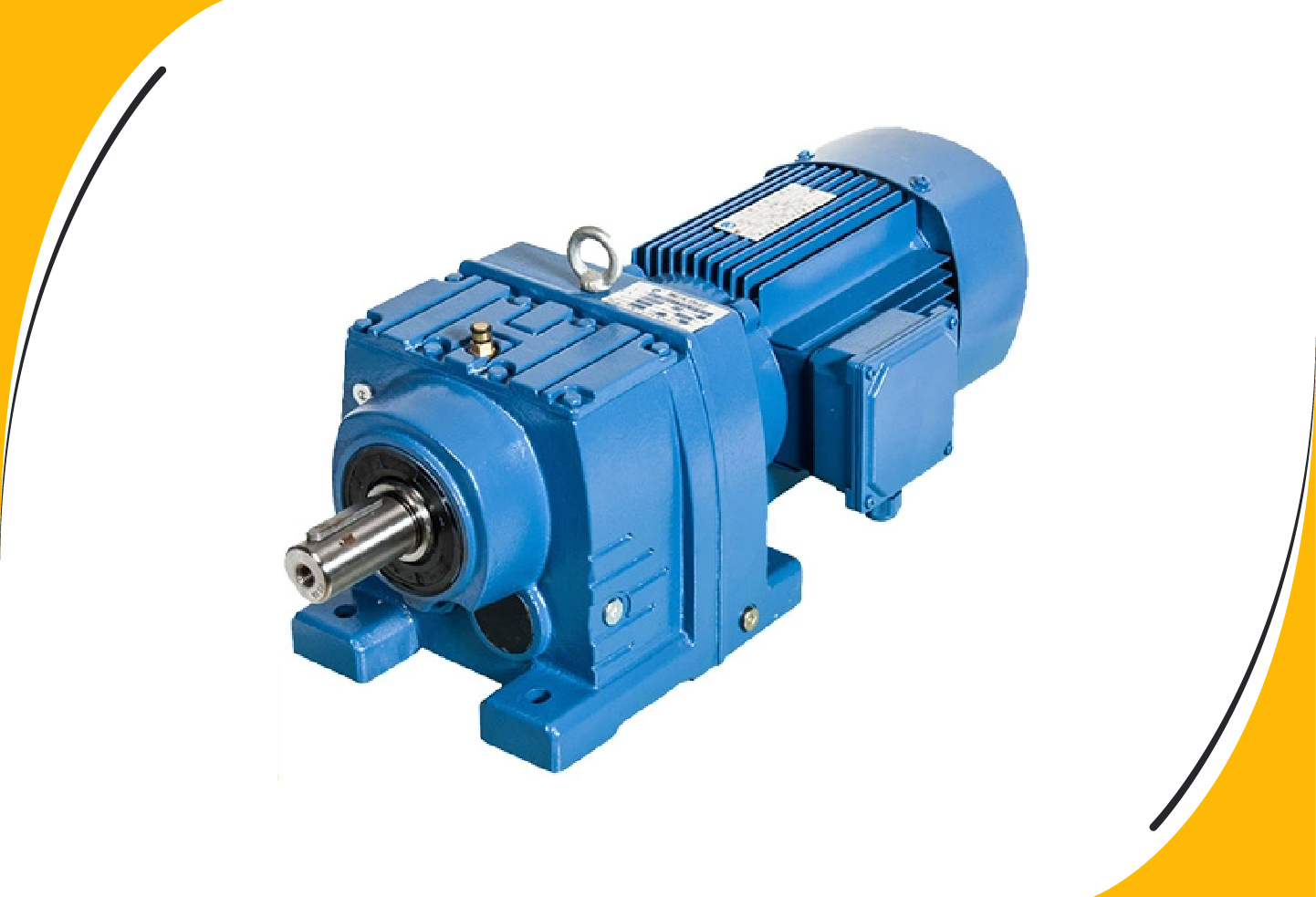

R SERIES INLINE HELICAL GEARBOX / MOTOR

R Series Inline Helical Gearbox / Motor

The R  Series Inline Helical Gearbox / Motor is a highly versatile and reliable power transmission solution that is designed to meet the growing demands of modern industrial applications. These gearboxes and motors are commonly employed in a wide range of industries such as manufacturing, food processing, packaging, material handling, and more. Their robust design, compact structure, and superior efficiency make them ideal for applications that require continuous operation, high torque, and low noise levels. This article provides an in-depth overview of the R Series Inline Helical Gearbox / Motor, highlighting its features, advantages, applications, and benefits.

1. Introduction to Inline Helical Gearboxes / Motors

A helical gearbox is a type of mechanical device used to transmit power between shafts that are oriented at an angle. The helical gears inside these gearboxes have teeth that are cut at an angle to the axis of rotation. This design enables smoother and quieter operation compared to other types of gearboxes, such as spur gearboxes. The R Series Inline Helical Gearbox / Motor is designed to combine the high efficiency of a helical gearbox with the power of an integrated motor.

The motor and gearbox are arranged in a compact, inline configuration, which means the input and output shafts are aligned along a common axis. This configuration saves space and allows for more efficient energy transfer, making it ideal for applications where space is limited or where high torque and low noise operation are required.

2. Key Features of the R Series Inline Helical Gearbox / Motor

2.1 High Efficiency

The R Series Inline Helical Gearbox / Motor is designed to provide high torque output while maintaining high efficiency. The helical gears inside the gearbox ensure that power is transferred smoothly with minimal energy loss. This high efficiency translates to lower energy consumption, making the R Series a cost-effective solution for both low and high-demand applications.

The helical gears also contribute to the system's ability to handle heavy loads, which is a critical feature in industries like manufacturing and material handling, where high torque is necessary.

2.2 Compact and Robust Design

The R Series Inline Helical Gearbox / Motor is known for its compact design. The inline configuration ensures that the gearbox and motor are aligned, saving space while maintaining high performance. The gear housing is made from durable materials such as cast iron or high-strength aluminum alloys, ensuring robustness and long-lasting performance under challenging operating conditions.

This design is particularly advantageous in applications where space is limited or where there is a need to fit the power transmission system into existing machinery or equipment.

2.3 Noise Reduction

One of the primary benefits of helical gears over other types of gears, such as spur gears, is their quieter operation. The angled teeth of helical gears mesh more smoothly, reducing the noise and vibration produced during operation. This makes the R Series Inline Helical Gearbox / Motor ideal for noise-sensitive applications, such as in food processing, pharmaceutical manufacturing, and laboratory environments.

Reduced noise levels contribute to a safer and more comfortable working environment for operators, as well as less wear and tear on surrounding machinery.

2.4 Versatile Applications

The R Series Inline Helical Gearbox / Motor is highly versatile, with applications in a wide variety of industries. Its design and performance characteristics make it ideal for industrial automation, material handling, conveyors, robotics, and many other applications. The gearbox and motor can be customized to meet the specific requirements of different industries, such as varying torque requirements, speed adjustments, and size limitations.

2.5 Easy Integration

The R Series Inline Helical Gearbox / Motor is designed for ease of integration into existing systems. Whether used in new equipment or retrofitted into older machines, these gearboxes are easy to install and require minimal maintenance. The inline configuration allows for a direct coupling between the motor and the gearbox, ensuring minimal space requirements and simple installation.

This ease of integration reduces downtime during installation and helps businesses save time and money.

2.6 Customizable Speed and Torque Options

The R Series Inline Helical Gearbox / Motor offers a variety of speed and torque options to meet the specific needs of different applications. The gear ratios can be tailored to provide the desired output speed and torque, allowing for precise control over the movement of machinery and equipment. Whether high-speed or high-torque is required, the R Series provides flexibility for customization.

This flexibility is particularly useful in applications like conveyors, where varying speed is needed depending on the material being moved, or in robotics, where precise torque control is required for delicate movements.

3. Advantages of R Series Inline Helical Gearbox / Motor

3.1 Reduced Power Loss

The RSeries Inline Helical Gearbox / Motor minimizes power loss, thanks to the highly efficient helical gear design. This results in lower energy consumption, which can translate to significant cost savings over time. Lower energy consumption also contributes to a more sustainable operation, making it an environmentally friendly choice.

3.2 Long Service Life

Due to its durable construction and high-quality materials, the R Series Inline Helical Gearbox / Motor is built to last. The gearbox is designed to withstand high stress and heavy loads while maintaining consistent performance over time. Additionally, the integrated motor is designed to run at optimal efficiency, minimizing wear and tear.

3.3 High Load Capacity

The helical gears inside the gearbox provide excellent load distribution, enabling the R Series to handle heavy loads with ease. This makes it suitable for industrial applications that require consistent torque output under demanding conditions.

3.4 Reduced Maintenance Requirements

With its efficient design and durable materials, the R Series Inline Helical Gearbox / Motor requires less frequent maintenance than other types of gearboxes. The robust construction and high efficiency reduce the likelihood of wear-related failures, allowing operators to focus on other tasks.

3.5 Energy Efficiency

Energy efficiency is a key benefit of the R Series Inline Helical Gearbox / Motor. The gearboxes are designed to operate with minimal friction and energy loss, ensuring that the motor operates at its most efficient level. This results in reduced operating costs and a lower carbon footprint.

4. Applications of the R Series Inline Helical Gearbox / Motor

The R Series Inline Helical Gearbox / Motor is used in a wide range of industries and applications, including but not limited to:

4.1 Material Handling Systems

In material handling, the R Series Inline Helical Gearbox / Motor is commonly used to drive conveyors, hoists, and elevators. The ability to deliver high torque and smooth operation makes it ideal for applications that require the movement of heavy materials. Its ability to be customized for specific speed and torque requirements ensures that the system operates efficiently.

4.2 Manufacturing and Automation

Manufacturing processes often require precise and consistent motion. The R Series Inline Helical Gearbox / Motor is used to drive automation systems in manufacturing facilities. Its high torque and smooth operation allow it to power machinery that requires continuous and reliable motion, such as robots, CNC machines, and assembly lines.

4.3 Food Processing

In the food processing industry, there are strict requirements for hygiene and equipment reliability. The RSeries Inline Helical Gearbox / Motor’s compact design, low noise output, and ease of integration make it suitable for use in food production lines. It ensures that machinery runs smoothly and efficiently, while reducing noise pollution in sensitive environments.

4.4 Packaging Industry

The packaging industry requires high-speed, high-efficiency equipment to keep up with fast production lines. The R Series Inline Helical Gearbox / Motor is used to drive packaging machines, ensuring smooth operation and reliable performance even under high load conditions. Its compact design allows for easy integration into existing systems.

4.5 Robotics

In robotics, precise control over torque and speed is essential. The R Series Inline Helical Gearbox / Motor can be tailored to provide the necessary speed and torque for robotic arms, automated guided vehicles (AGVs), and other robotic systems. The gearbox ensures smooth, accurate movements while minimizing energy consumption.
